Features
- ASTER gives you great flexibility and is future-proof. Today you can program the most important functions with the trigger, and tomorrow you can borrow a USB-Link or Blu-Link from a friend to configure advanced functions, perform a firmware update, run diagnostics or use the GCS app on a smartwatch
- Hair-trigger up to 60 sensitivity in the first millimeter of trigger movement
- Top-notch automatic pre-cocking
- Foregoing reverse polarity protection in exchange for unparalleled performance
- You can update its firmware via the Internet
- Lowest in the market current consumption. Deep sleep mode with only 0.29 mA current consumption prevents battery discharge
- Built-in voltage boost converter allows for trouble-free operation with weaker batteries and increases the switching efficiency
- 3.75 V ready it operates at very low voltage (even 1.2 V during the shot), which is important in high-tuned AEGs, where the voltage under load drops significantly
- Sensor that supports Infinite Torque-up, DSG, SSG, 19-tooth and standard gears
- The possibility of using a mechanical trigger lock
- Compatibility with brushless motors

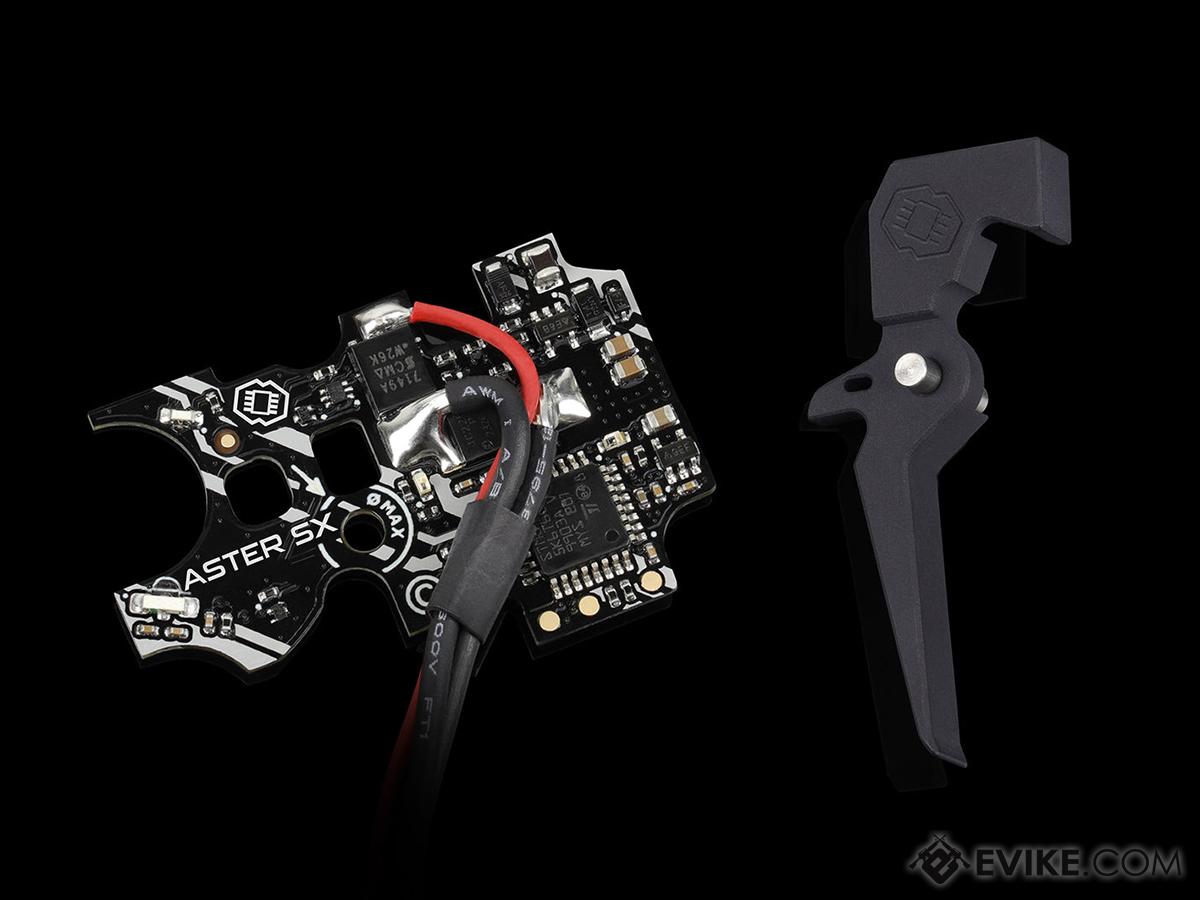

ASTER SX for V2 gearboxes the natural successor of ASTER SE merges years of experience with cutting edge tech. ASTER SX is fully compatible with popular brushless motors even with batteries up to 11.1 V. The unit heats up less even while accommodating higher loads. ASTER can operate with stronger springs and more demanding configurations. ASTER SX comes with a free Quantum Trigger, so you can easily set sensitivity from ludicrous touch through hair to full movement. Improved programming via trigger gives you settings such as automatic Pre-Cocking, trigger sensitivity adjustment, Active Brake settings with top-class adaptive mode. Calibration available just via trigger and selector movement. ASTER V2 SX turns your AEG into future-proof advanced training equipment. All this, along with a thicker and sturdier PCB 1 mm in thickness makes ASTER V2 SX one of the most durable ETUs on the market.
ASTER is future-proof, thanks to compatibility with USB-Link and Blu-Link. You can update your firmware and get new options, connect additional accessories, check telemetry.
Why ASTER's programming via trigger is user-friendly?
- you do not need to rush
- you can navigate the menu very quickly and efficiently or slowly and calmly
- the colors of the led lights are only a help you can rely on the vibration of the motor
- in case of any problems, you can use the very popular USB-Link or Blu-Link and use the GCS App
What is the self-learning automatic pre-cocking?
- thanks to Pre-cocking, you gain trigger reaction similar to real life
- it will automatically set piston position
- it is easy-to-use, just set one of the 3 modes: LOW, MID or HIGH
- it automatically adapts to the battery voltage and rate of fire
Manufacturer: GATE
Specifications:
Wiring Direction: Front Wired
Supply Voltage Range: 3.75-12.9V
Rated Current: 30A
Current Consumption: 23mA
Low Power Mode: 288A
Dimensions (Length x Width x Height): 43.8 mm x 28.7 mm x 7.7 mm
Weight: 23.35 g
Operating Temperature Range: min. -15C max. + 50C
Relative Humidity: 80%
Compatibility: Fits most Version 2 Airsoft AEG gearboxes
Package Includes: ASTER Module, Quantum Trigger, "Programming via Trigger" Card, Installation Kit, Quickstart Guide
How to update firmware:
-plug Aster battery connector into USBlink or BluLink and connect it to a Cell phone or PC with the GCS app installed
-Go to Status panel and select the most current firmware version
-if not already installed, click "update". this process should take ~2 min to install. all of your previous settings will be saved
